Extreme Rage Hopper: Electronic Eye
Setup |
|
|

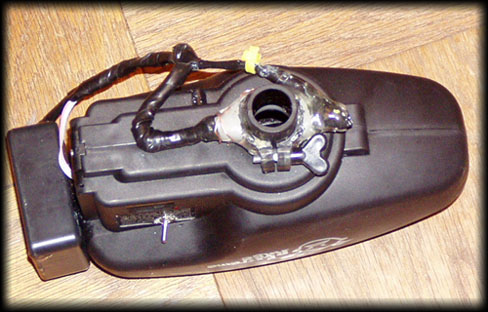

The electronic eye setup is easy and can be done in many
ways. I picked the elbow neck of a 45 Deg elbow with tightening screw
because it would make for a removable piece(easy to clean) and can be
adjusted by twisting it few degrees left or right , its a crude way of
adjusting the sensitivity. The IR reciver recives all Infared light this
includes sun light, neon light, light bulb light halogen ligh, any light
what so ever!!! this really poses a problem cause you cannot totally stop
all light from reaching the hoppers neck, you have the transparent lid,
and light comming down the barrel and up, but you can adjust it, maybe
putting a stronger resistor on the reciver and sender would do the trick,
but then again we have all those transistors helping boost the signal
and now it turns out that its bit too much... well work it... my solution
is make holes smaller and gently twist the eyestup until proper result
is reached and then tighten the buterfly screw to keep it tightly in place.
Another thing is that the elbow I used was smoke color, so its still some
what transparent, mamzingly light from the outside would make its way
to the IR reciever anyways, so I painted it black on bot sides which helped
somewhat, I' thinking to take old remote controll take it apart and take
that red filter it has covering the emitter cut it to size and put it
over the emitter and reciever in the hopper. Mail me if you got suggestions.
|
|
  |
|

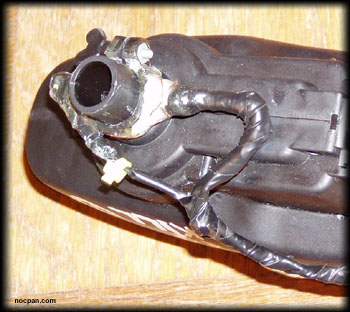

At
the top right pic you see the besic setup, but i noticed that paintballs
can fly fast and 1 hit actually broke off the part i epoxyed. So i went
to the drawing board and used some copper wire to tighten it on the ring,
then used way more!! epoxy and applied it 3 times in layers in different
spots and along the wires too, in order to make the whole ring more solid,
it this breakes, i will have to whip out the fiberglass. |
